pH Neutralization Systems by Digital Analysis Corp. batchTREAT
40 to 1,000 GPM
Packaged pH Neutralization Systems


batchTREAT pH Neutralization Systems

System Features

  1. Skid Mounted
  2. Turnkey Construction
  3. Minimal Installation Time
  4. Completely Automated
  5. NEMA 4X, UL 508
  6. State of the Art Controls
  7. Bi-Directional pH Control.

batchTREAT pH Adjustment systems are designed to handle a variety of highly acidic and highly alkaline waste streams. Any acidic or basic stream, of any concentration, from any source can be safely and effectively neutralized with a batchTREAT pH Adjustment system. These are batch pH adjustment systems that handle continuous flows through the use of an influent equalization system which is standard on all of our batchTREAT pH Adjustment systems.

All of our pH systems feature state of the art instrumentation and control systems using our proprietary "Optimized Batch" pH adjustment technology.

Completely automated operation requires no operator attention other than periodic instrumentation calibrations and maintenance. Remote monitoring via SCADA, building management, or online / Internet connection is available on all of our pH adjustment systems.

Standard Materials of Construction*

  1. Treatment Tank: Polypro(PP), FRP, Stainless Steel
  2. Reagent Tank(s)Polypro, PE, XLPE
  3. Pump(s): CPVC, Polypro, Stainless Steel
  4. Piping System: PVC, CPVC, Polypro, 316SS

*Alternate materials of construction available.

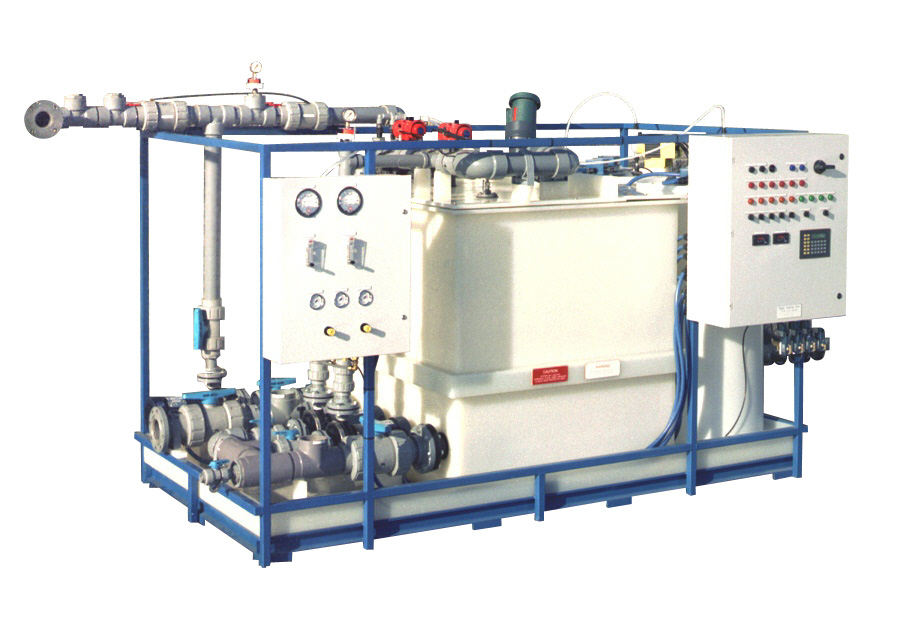

batch Acid Wastes Neutralization System   batchTREAT pH Neutralization System



 Optional Equipment

  1. Influent Equalization
  2. Influent / Effluent Lift Stations
  3. Final Effluent Monitoring
  4. Effluent Sampling
  5. SCADA System Monitoring
  6. Duplex Systems for Redundancy
  7. Bulk Chemical Delivery
  8. Explosion Proof Design

MODEL Average Flow* (GPM) Max Peak Flow* (GPM) Treatment Tank Volume (Gallons) Skid Dimensions
BT40 40 200 1,100 6' x 12' x 8'(H)
BT60 60 250 1,100 6' x 12' x 8'(H)
BT125 125 500 1,200 (x2) 8' x 16' x 8'(H)
BT250 250 1000 5,000 (x2) 20' x 24' x 12'(H)
BT500 500 2000 10,000 (x2) 16' x 31' x 14'(H)
BT1000 1000 4000 20,000 (x2) 18' x 40' x 25'(H)
*Average Flow = Average 60 minute flow rate.
*Peak Flow = Peak flow rate for less than 5 minutes.
